HOW TO SPEC A BATTERY

A yellow icon of a battery with a lightning bolt on it.

STEP 1

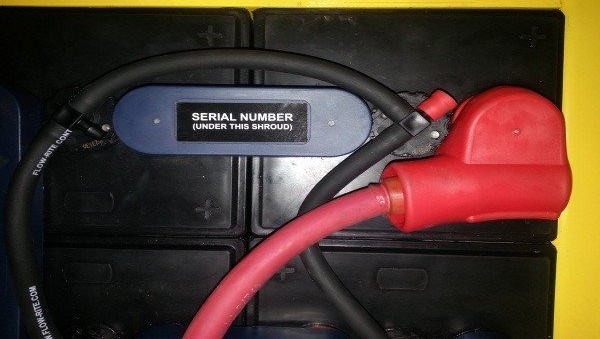

 Find the Model number of the battery by following the positive cable to the first cell. The model number is under the shroud of the inter-cell connector, connecting the first and second cell.

A close up of a battery with a red cable attached to it
A yellow icon of a battery with a lightning bolt on it.

STEP 2

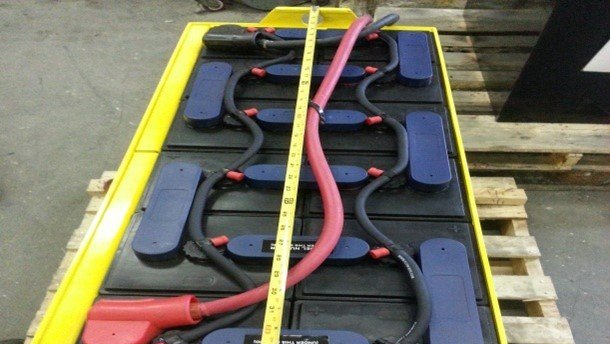

Measure the length of the battery from lifting ear to lifting ear.

A battery is being measured with a tape measure
A yellow icon of a battery with a lightning bolt on it.

STEP 3

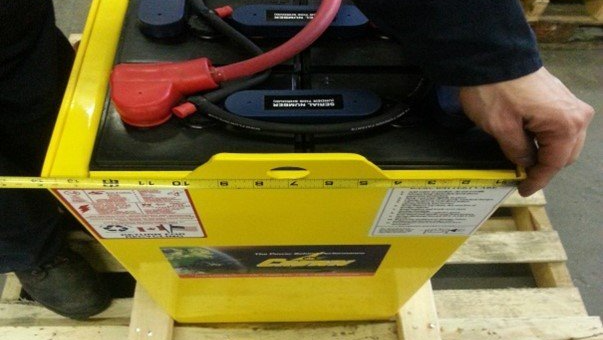

Measure the width of the battery from front to back

A person is measuring a yellow battery with a tape measure
A yellow icon of a battery with a lightning bolt on it.

STEP 4

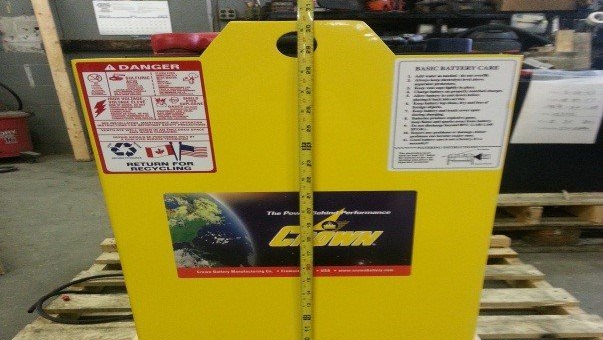

Measure the height of the battery from the bottom to the top of the lifting ear or cover.

A yellow battery with the word crown on it
